High-Performance Straight Bevel Gears

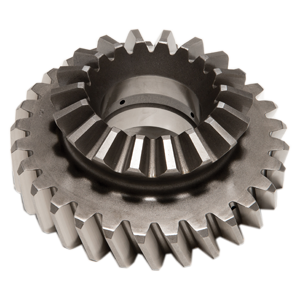

Straight bevel gears are one of the simplest and oldest forms of bevel gearing, designed to transmit motion and power between intersecting shafts—most often at a 90° angle. Unlike spiral bevel gears, which have curved teeth, straight bevel gears have straight-line teeth that converge at the apex of the gear’s pitch cone. This design makes them easier and less expensive to manufacture, while still offering reliable performance in a wide range of mechanical applications.
Because the teeth engage all at once rather than gradually, straight bevel gears can produce higher impact loads, noise, and vibration compared to spiral designs. However, they remain an excellent choice for applications where simplicity, low cost, and compact power transmission are more important than extremely smooth operation.
Design & Technical Features
- Geometry: Teeth are cut straight along the pitch cone, meeting at a common apex.
- Pitch Angle: Determines the relative shaft angle (commonly 90°).
- Materials: Usually high-grade alloy steel, treated for strength and wear resistance.
- Surface Treatment: Induction hardening, carburising, or nitriding for durability.
- Accuracy: Backlash, mounting distance, and pressure angle must be precisely controlled for efficient operation.
- Size Range: Northern Tool and Gear manufactures straight bevel gears from approximately 50 mm PCD up to 700 mm PCD using advanced Gleason CNC machinery.
Manufacturing Excellence
Northern Tool and Gear ensures consistent quality through:
- In-house heat treatment with quench press technology to minimise distortion.
- Precision finishing (grinding and lapping) after heat treatment for high accuracy.
- Reverse engineering services, producing straight bevel sets from samples for obsolete machinery or custom applications.
Applications of Straight Bevel Gears
Straight bevel gears are widely used where noise control is not the highest priority, but efficiency, reliability, and straightforward geometry are valued:
- Power tools and hand drills
- Printing presses and textile machinery
- Railway track inspection and signalling equipment
- Automotive steering systems and low-to-medium torque transmissions
- Agricultural machinery and construction equipment
- Marine auxiliary drives
Frequently Asked Questions
Spiral bevel gears are ideal for high-speed, high-torque applications needing smooth power transfer at an angle. They are widely used in automotive differentials, aerospace machinery, marine propulsion, and industrial drives where quiet, efficient operation is essential.
They are more expensive and complex to manufacture than straight bevel gears. They also require precise alignment, and maintenance can be costlier. However, their higher tooth contact ratio reduces noise and vibration, making them superior in performance-critical settings.
Spiral bevel gears operate on intersecting shafts, while hypoid gears operate on non-intersecting, offset shafts. The offset in hypoids allows for higher gear ratios and improved packaging in automotive drivetrains.
Straight bevel gears have straight teeth, making them cheaper and simpler but also noisier under load. Spiral bevel gears have curved teeth that engage gradually, offering smoother, quieter, and more efficient power transmission—ideal for high-speed, heavy-duty use.
